16Mo3 Flanges Manufacturer and Supplier In Kuala Lumpur, Malaysia

Facundo Flanges is a leading manufacturer and supplier of high quality flanges in Kuala Lumpur, Malaysia comprising of the 16Mo3 flanges that are built with the aim of giving good output in the harsh industrial settings. Our 16Mo3 flanges are designed to handle high temperatures and pressure hence suitable to use in boilers, heat exchangers, and power plants. Facundo Flanges provides quality, longevity, and customer satisfaction solutions in flange services, which are reliable, economical, and have met the requirement of the international standards and various industries.

16Mo3 Flanges Exporter in Kuantan, UNS K11562 Flanges Sizes in mm, 16Mo3 Manufacturer in George Town, 16Mo3 Flanges Thickness, 16Mo3 Flanges Supplier in Kuala Lumpur, 16Mo3 Flanges Price List in Malaysia, 16Mo3 Flanges Distributor in George Town, 16Mo3 Flanges Supplier in George Town, 16Mo3 Flanges Distributor in Malaysia

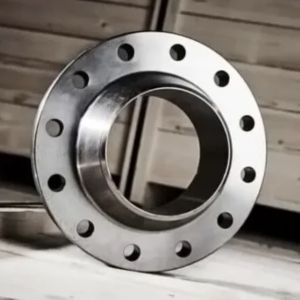

Alloy Steel 16Mo3 SORF Flange

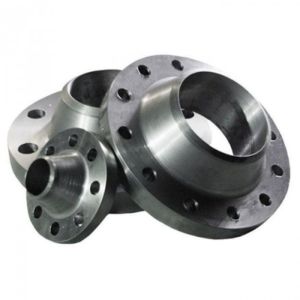

Alloy Steel 16Mo3 WNRF Flange

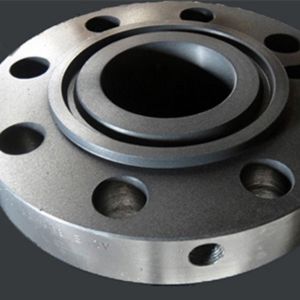

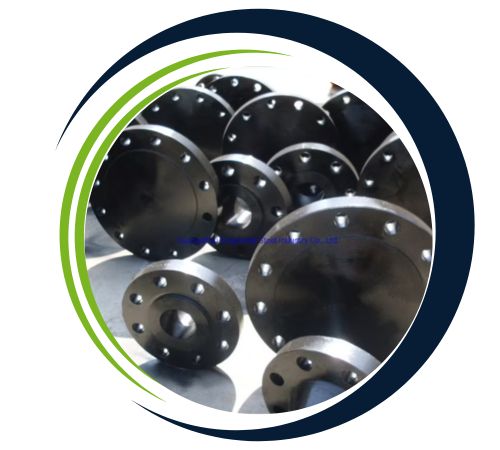

Alloy Steel 16Mo3 Flange

16Mo3 flanges are produced out of chromium-molybdenum alloy steel that has about 0.12 to 0.20 percent carbon, 0.25 to 0.35 percent molybdenum, 0.30 0.90 percent manganese and trace rates of silicon, phosphorus and sulfur. Their mechanical strength is excellent and tensile strength is 450-600Mpa and yield strength is approximately 280 320Mpa. These flanges have good elongation (minimum 22) and higher creep resistance at high temperature. Mechanically, 16Mo3 steel weighs 7.9 g/cm 3 and has high thermal conductivity which is ideal in industrial high pressure and temperature conditions.

Alloy Steel 16Mo3 Flanges Supplier in Kuala Lumpur, 16Mo3Flanges Weight Chart, 16Mo3 Flanges Exporter in Kuantan, 16Mo3 Flanges Manufacturer in George Town, 16Mo3 Flanges Price List in Malaysia, 16Mo3 Flanges Sizes in mm, 16Mo3 Flanges Distributor in George Town, ANSI B16.5 16Mo3 Flanges in Ipoh, 16Mo3 Flanges Distributor in Malaysia

16Mo3 Flanges Specification

Specifications	16Mo3 Flanges
Coating	Anti-rust Paint/ Zinc Plated/ Oil Black Paint/ Yellow Transparent/ Cold and Hot Dip Galvanized
Manufacturer of	Forged/ Threaded/ Screwed / Plate
Manufacturer Length	NPS 1⁄₂” Inch To NPS 48” Inch
Face Type	RTJ/ RF/ FF
Schedule Chart	SCH 5S To XXS.
Vishal Steel Manufacturer Belbow Types	Weld Neck/ Socket Weld/ Threaded/ Reducing/ Lap Joint/ Blind/ Slip On
Forging Methods	Forging & Casting, Rolling & Cutting
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Application	Bitumen upgraders Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
JIS Standard	5K/ 10K/ 16K 20K/ 30K/ 40K/ 63K
Flange Test	Hydrostatic testing machine/ UI trasonic flaw detector/ X-ray detector/ Direct-reading Spectrograph/ Magnetic particle detector
Supporting Material	Gasket/ Ring Joint/ Flange Bolts
Production Technique	Forged/ Heat treated and machined
Packing	Plywood Pallet And Plywood Box
Brand	Vishal Steel
Productivity	800 ton per month
Transportation	Ocean And Air
Supply Ability	700 Ton Per Month
Flange Equipment	Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc

Chemical Composition of 16Mo3 Flanges

Element	Percentage %	Element	Percentage %
P	0.025	V	–
S	0.010	Al	–
Cr	0.030	N	0.012
Mo	0.25/0.35	Cu	0.30
C	0.12/0.20	Ni	0.30
Si	0.35	Nb	–
Mn	0.40/0.90	Ti	–

Mechanical Properties of 16Mo3 Flanges

16Mo3 Flanges	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation in 100-150 mm(%)	Maximum Thickness (mm)	Elongation in 16 mm(%)
16Mo3 Flanges	440-590	220-275	19	250	24

Equivalent Grades Alloy Steel 16Mo3 Flanges

DIN,WNr	BS	UNI	ISO	DIN	UNS
16Mo3	240	16Mo3	P26	1.5415	K11562
	243		TS26

16mo3 Temperature Range

Grade	Thickness	Temperature (°C)
	Thickness	50	100	150	200	250	300	350	400	450	500
	(mm)	MPa	MPa	MPa	MPa	MPa	MPa	MPa	MPa	MPa	MPa
16Mo3 Flanges	≤16	273	264	250	233	213	194	175	159	147	141
	>16 ≤40	268	259	245	228	209	190	172	156	145	139
	>40 ≤60	258	250	236	220	202	183	165	150	139	134
	>60 ≤100	238	230	218	203	186	169	153	139	129	123
	>100 ≤150	218	211	200	186	171	155	140	127	118	113
	>150 ≤250	208	202	191	178	163	148	134	121	113	108

Largest 16Mo3 Flanges Supplier in Kuala Lumpur, Malaysia

Facundo Flanges, a leading supplier in Kuala Lumpur, Malaysia, offers an extensive selection of 16Mo3 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

16Mo3 flanges are broadly favored in high temperature, high pressure industry because of the high strength and heat resistance. They are usually applied in boilers, heat exchangers, pressure vessels as well as steam pipelines in power plants, refineries, and petrochemical industries. Such flanges are suitable in those systems that carry hot gases or fluids to make sure that they are reliable and durable even in extreme conditions. Their exceptionally high corrosion and oxidation resilience make them appropriate in long term application in conditions that have aggressive media and thermal stresses.

UNS K11562 Flanges Price List in Kuala Lumpur, 1.5415 Flanges Supplier in Kuantan, 16Mo3 Flanges Exporter in George Town, 16Mo3 Flanges Supplier in George Town, 16Mo3 Flanges Exporter in George Town, 16Mo3 Flanges Size Chart, 16Mo3 Flanges Price in Ipoh, 16Mo3 Flanges Thickness, 16Mo3 Flanges Supplier in Malaysia, 16Mo3 Flanges Stockist in Kuantan, 16Mo3 Flanges Exporter in Malaysia

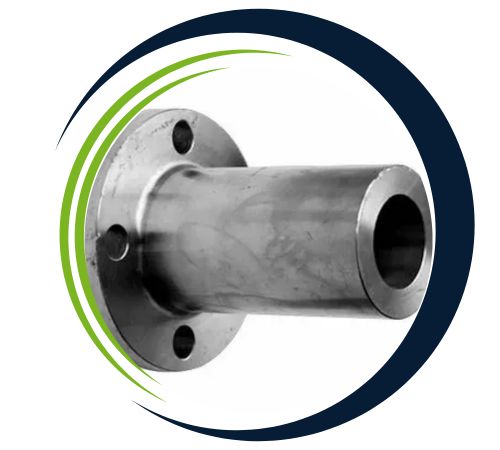

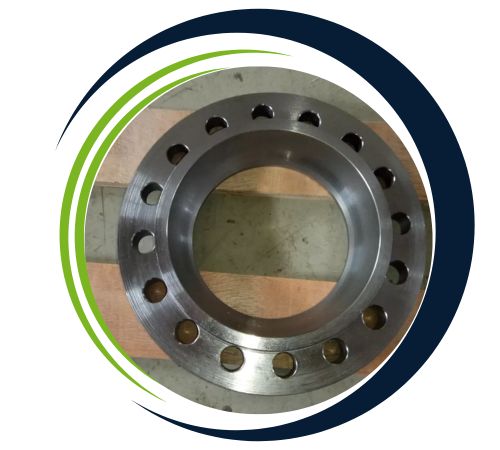

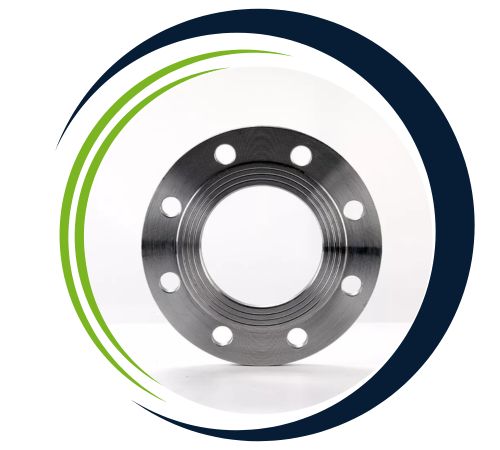

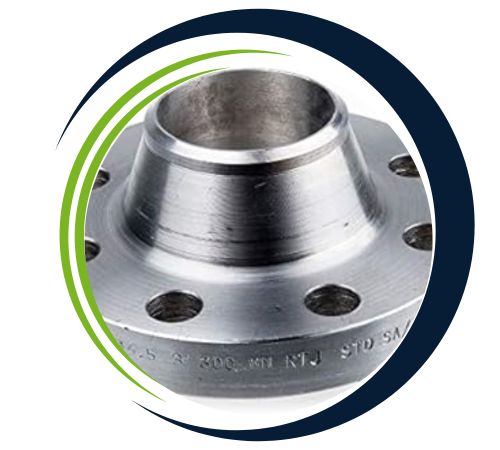

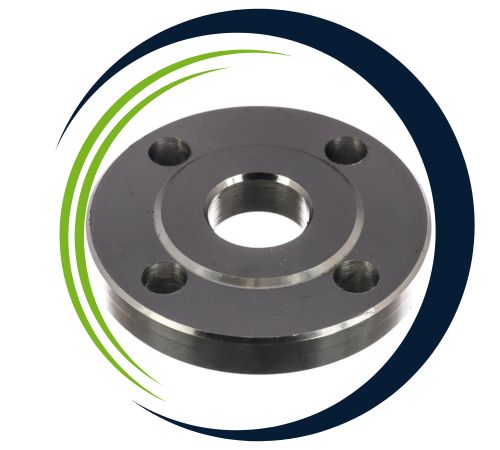

Types of 16Mo3 Flanges

16mo3 Alloy Steel Flange Sizes Chart

Normal Pipe Size	DN
1/2	15
3/4	20
1	25
1 1/4	32
1 1/2	40
2	50
2 1/2	65
3	80
4	100

16mo3 Flange Dimensions

Flanges Size inches	Flanges Size millimeter	Outer Diameter (O.D.) inches	Outer Diameter (O.D.) millimeter	Inner Diameter (I.D.) inches	Inner Diameter (I.D.) millimeter	Ø B.H.C. In inches	Ø B.H.C. In millimeter	Ø B.H. inches	Ø B.H. millimeter	# B.H.	Thickness inches	Thickness millimeter	Weight lbs	Weight Kilogram
8.0	200	13.39	340	8.72	221.50	11.61	295	0.870	22	12	1.020	26	21.0	9.5
10.0	250	15.94	405	10.88	276.40	13.97	355	1.020	26	12	1.140	29	31.0	14.1
12.0	300	18.11	460	12.88	327.20	16.14	410	1.020	26	12	1.260	32	42.7	19.4
14.0	350	20.47	520	14.19	360.40	18.50	470	1.020	26	16	1.380	35	62.3	28.3
15.0	400	22.83	580	16.19	411.20	20.67	525	1.180	30	16	1.500	38	80.5	36.5
17.0	450	25.20	640	18.19	462.00	23.03	585	1.180	30	20	1.650	42	110.3	50.1
19.0	500	28.15	715	20.19	512.80	25.59	650	1.300	33	20	1.810	46	141.5	64.2
24.0	600	33.07	840	24.19	614.40	30.32	770	1.420	36	20	2.050	52	213.5	96.9

16mo3 Flanges Schedule Chart

Normal Size Of Steel Pipe	Outer Diameter (O.D.)	10 Schedule	20 Schedule	30 Schedule	STD Wall	40 Schedule	60 Schedule	EXT Hvy	80 Schedule	100 Schedule	120 Schedule	140 Schedule	160 Schedule	XX Hvy
½	0.84	0.083	…	…	0.109	0.109	…	0.147	0.147	…	…	…	0.188	0.294
¾	1.05	0.083	…	…	0.113	0.113	…	0.154	0.154	…	…	…	0.219	0.308
1	1.315	0.109	…	…	0.133	0.133	…	0.179	0.179	…	…	…	0.25	0.358
1 ¼	1.66	0.109	…	…	0.14	0.14	…	0.191	0.191	…	…	…	0.25	0.382
1 ½	1.9	0.109	…	…	0.145	0.145	…	0.2	0.2	…	…	…	0.281	0.4
2	2.375	0.109	…	…	0.154	0.154	…	0.218	0.218	…	…	…	0.344	0.436
2 ½	2.875	0.12	…	…	0.203	0.203	…	0.276	0.276	…	…	…	0.375	0.552
3	3.5	0.12	–	–	0.216	0.216	–	0.3	0.3	–	–	–	0.438	0.6
3 ½	4	0.12	–	–	0.226	0.226	–	0.318	0.318	–	–	–	–	0.636
4	4.5	0.12	–	–	0.237	0.237	–	0.337	0.337	–	0.438	–	0.531	0.674
5	5.563	0.134	–	–	0.258	0.258	–	0.375	0.375	–	0.5	–	0.625	0.75
6	6.625	0.134	–	–	0.28	0.28	–	0.432	0.432	–	0.562	–	0.719	0.864
8	8.625	0.148	0.25	0.277	0.322	0.322	0.406	0.5	0.5	0.594	0.719	0.812	0.906	0.875
10	10.75	0.165	0.25	0.307	0.365	0.365	0.5	0.5	0.594	0.719	0.844	1	1.125	1
12	12.75	0.18	0.25	0.33	0.375	0.406	0.562	0.5	0.688	0.844	1	1.125	1.312	1
14	14	0.25	0.312	0.375	0.375	0.438	0.594	0.5	0.75	0.938	1.094	1.25	1.406	–
16	16	0.25	0.312	0.375	0.375	0.5	0.656	0.5	0.844	1.031	1.219	1.438	1.594	–
18	18	0.25	0.312	0.438	0.375	0.562	0.75	0.5	0.938	1.156	1.375	1.562	1.781	–
20	20	0.25	0.375	0.5	0.375	0.594	0.812	0.5	1.031	1.281	1.5	1.75	1.969	–
22	22	0.25	–	–	0.375	–	–	0.5	–	–	–	–	–	–
24	24	0.25	0.375	0.562	0.375	0.688	0.969	0.5	1.219	1.531	1.812	2.062	2.344	–
26	26	–	–	–	0.375	–	–	0.5	–	–	–	–	–	–
30	30	0.312	0.5	0.625	0.375	–	–	0.5	–	–	–	–	–	–

Are Custom Sizes Available for 16Mo3 Flanges?

Yes, we offer custom sizes for 16Mo3 Flanges to meet specific project needs. Our team at Facundo Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@facundoflanges.com.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
