Facundo Flanges is an experienced manufacturer and supplier located in Kuala Lumpur, Malaysia, that specializes in high-end flange solutions for various industries. Their Monel Spectacle Flanges offer reliable corrosion resistance, durability, and strength making them the best fit for marine, chemical, and offshore uses. Facundo Flanges has access to modern, state of the art production facilities, adheres to strict quality control procedures, and services customers that is in their best interest, to manufacture connections you can rely on to perform without leaking or failing. This focus on excellence ensures that Facundo Flanges will stand by their commitment of providing and upholding their high-performance Monel Spectacle Flanges.

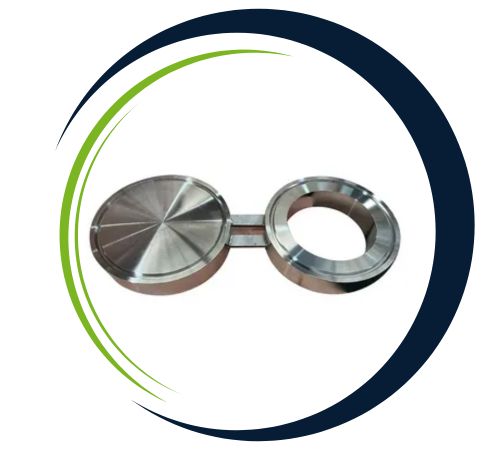

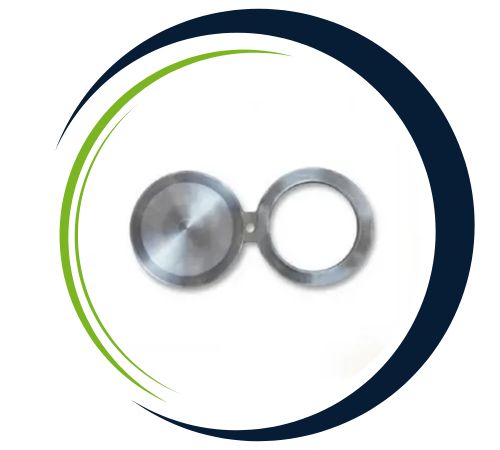

Monel Spectacle Flanges are made up of approximately 63% nickel and 28–34% copper. The remediation of small amounts of iron, manganese, carbon and silica enable the strength and corrosion resistance of alloys. This nickel copper alloy is remarkably resistant to seawater, acids, and alkaline environments. From a mechanical standpoint, Monel spectacle flanges offer high tensile and yield strength, excellent toughness, and stability at high temperatures and pressures. Their special configuration helps guarantee reliable operation for isolation of piping, and the robust construction supports dependable, long-term performance in highly corrosive marine–chemical–industrial service.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MAlloy S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| PRESSURE Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| PRESSURE Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |

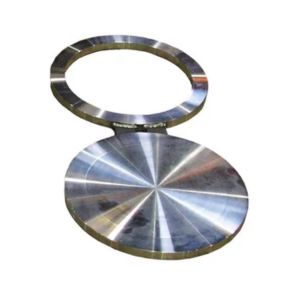

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Premonel machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MAlloy SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MAlloy SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MAlloy SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Monel 400, K500 |
Facundo Flanges, a leading supplier in Kuala Lumpur, Malaysia, offers an extensive selection of Monel Spectacle Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Monel Spectacle Flanges are commonly found in applications requiring high strength, good corrosion resistance, and pipelines that isolate the system from the source. Their efficacy in seawater environments makes them pleasurable for marine engineering, shipbuilding, and oil and gas platforms in offshore locations. They are utilized in chemical and petrochemical plants for pipelines that transport corrosive acids, alkalines, and/or high-temperature gases and liquids. The oval design allows for safe maintenance practices by permitting simple line isolation and the option for bypasses. They are also utilized in refineries, power plants, desalination units, and other industrial applications requiring leak-proof, high-strength, and good corrosion resistance connections that are essential to safety and function.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|

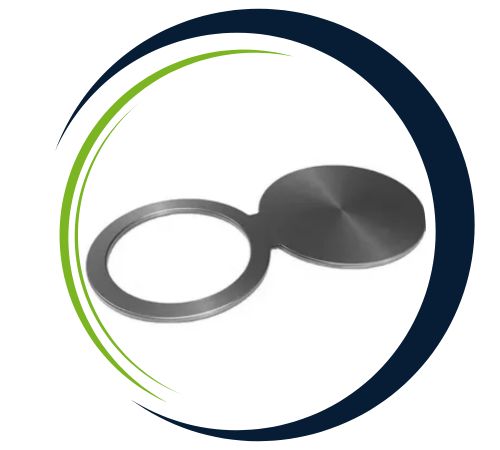

| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |

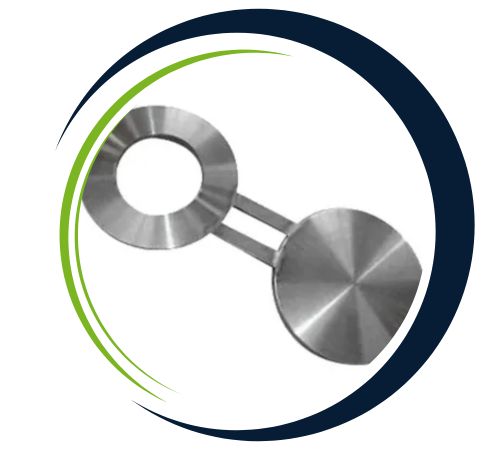

| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Yes, we offer custom sizes for Monel Spectacle Flanges to meet specific project needs. Our team at Facundo Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@facundoflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
